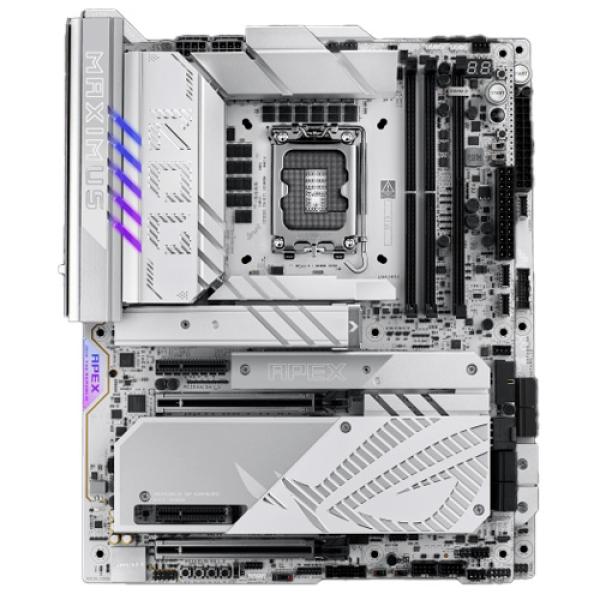

ROG Maximus Z890 Apex



ROG Maximus Z890 Apex


CPU:
  • Support Intel Core Ultra Processors(Series 2) , LGA1851
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
  • Chipset:Intel Z890 Chipset
Memory:
  • 2 x DIMM slots, max. 96GB, DDR5
  • Supports up to 9600+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
  • Dual Channel Memory Architecture
  • DIMM Fit
  • Supports Intel Extreme Memory Profile (XMP) memory module
  • Supports DIMM Flex
  • ASUS Enhanced Memory Profile III (AEMP III)
  • Graphics: 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs
Expansion Slots:
  • Support Intel Core Ultra Processors(Series 2)
  • 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)
  • Intel Z890 Chipset
  • 2 x PCIe 4.0 x4 slots
Storage:
  • Total supports 6 x M.2 slots and 4 x SATA 6Gb/s ports
  • Support Intel Core Ultra Processors(Series 2):
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)
Intel Z890 Chipset:
  • DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
Ethernet:
  • 1 x Realtek 5Gb Ethernet
  • ASUS LANGuard
USB:
  • Rear USB (Total 11 ports):
  • 2 x Thunderbolt 4 ports (2 x USB Type-C)
  • 1 x USB 20Gbps port (1 x USB Type-C)
  • 4 x USB 10Gbps ports (4 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 10 ports):
  • 1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)
  • 1 x USB 10Gbps connector (supports USB Type-C)
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • USB Type-C power delivery output: max. 5V/3A
Audio:
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  • Impedance sense for front and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  • High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  • Supports up to 32-Bit/384 kHz playback on front panel
Audio Features :
  • SupremeFX Shielding Technology
  • Savitech SV3H712 AMP
  • Gold-plated audio jacks
  • Rear optical S/PDIF out port
  • Premium audio capacitors
Audio cover:
Back Panel I/O Ports:
  • 2 x Thunderbolt 4 ports (USB Type-C)
  • 1 x USB 20Gbps port (1 x USB Type-C)
  • 4 x USB 10Gbps ports (4 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 1 x Wi-Fi Module
  • 1 x Realtek 5Gb Ethernet port
  • 2 x Gold-plated audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack  button
  • 1 x Clear CMOS button
  • 1 x PS/2 keyboard/mouse combo port
Internal I/O Connectors:
Fan and Cooling related :
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 2 x 4-pin Chassis Fan headers
  • 2 x 4-pin Full Speed Fan headers
  • 1 x W_PUMP+ header
  • 1 x Extra Flow Fan header
Power related:
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connector
  • 1 x 8-pin PCIe Power connector
Storage related:
  • 4 x M.2 slots (Key M)
  • 1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
USB:
  • 1 x USB 20Gbps connector (supports USB Type-C)
  • 1 x USB 10Gbps connector (supports USB Type-C)
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous:
  • 1 x 80 Light Bar jumper
  • 3 x Addressable Gen 2 headers
  • 1 x Alteration PCIe mode switch
  • 4 x BCLK button
  • 1 x BIOS Switch button
  • 1 x FlexKey button
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x LN2 Mode jumper
  • 1 x Pause switch
  • 18 x ProbeIt Measurement Points
  • 1 x ReTry button
  • 2 x RSVD switches
  • 1 x RSVD header
  • 1 x Safe Boot button
  • 1 x Slow Mode switch
  • 1 x Start button
  • 1 x 10-1 pin System Panel header
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt (USB4) header
Accessories:
  • ROG DIMM.2 with Heatsink:
  • 1 x ROG DIMM.2 with heatsink
  • 1 x M.2 pad for ROG DIMM.2
  • 2 x M.2 screw package for ROG DIMM.2
Additional Cooling Kit:
  • 1 x Thermal pad for M.2 22110
  • 1 x ROG Memory Fan Kit
Miscellaneous:
  • 1 x ASUS WiFi Q-Antenna
  • 1 x Q-connector
  • 1 x ROG VIP card
  • 3 x M.2 Q-Slide package
  • 5 x M.2 backplate rubber packages
  • 1 x ROG Bottle Opener
  • Installation Media:1 x USB drive with utilities and drivers
  • Documentation:1 x Quick start guide
  • Operating System:Windows 11  (22H2 & later)
Form Factor:
  • ATX Form Factor:12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
