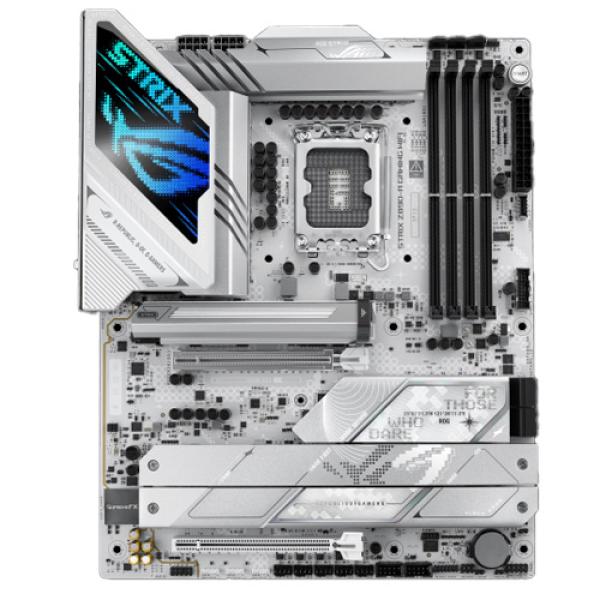

ROG Strix Z890 A Gaming WIFI



ROG Strix Z890 A Gaming WIFI

CPU:
  • Support Intel Core Ultra Processors (Series 2)
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset:
  • Intel Z890 Chipset
Memory:
  • 4 x DIMM slots, max. 192GB, DDR5
  • Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
  • Dual channel memory architecture
  • Supports Intel Extreme Memory Profile (XMP) memory module
  • Supports DIMM Flex
  • Supports DIMM FIT
  • ASUS Enhanced Memory Profile III (AEMPIII)
Graphics:
  • 1 x DisplayPort
  • 1 x HDMI port
  • 2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs
Expansion Slots:
  • Intel Core Ultra Processors (Series 2)
  • 1 x PCIe 5.0 x16 slot
  • Intel Z890 Chipset:
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage:
  • Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel Core Ultra Processors (Series 2):
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • Intel Z890 Chipset:
  • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
Ethernet:
  • 1 x Intel 2.5Gb Ethernet
  • ASUS LANGuard
  • Wireless & Bluetooth:
  • Wi-Fi 7
  •  2x2 Wi-Fi 7 (802.11be)
  •  Supports 2.4/5/6GHz frequency band
  •  Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
  •  Bluetooth v5.4
  •  Wi-Fi features may vary depending on the operating system
  •   For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
  •   For Windows 10, only Wi-Fi 6 is supported.
USB:
  • Rear USB (Total 10 ports):
  • 2 x Thunderbolt 4 ports (2 x USB Type-C)
  • 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPS Fast-charge)
  • 2 x USB 5Gbps ports (2 x Type-A)
Front USB (Total 7 ports):
  • 1 x USB 20Gbps connector (supports USB Type-C )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio:
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080:
  •  Impedance sense for front and rear headphone outputs
  •  Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  •  High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  •  Supports up to 32-Bit/384 kHz playback on front panel
Audio Features:
  • SupremeFX Shielding Technology, Savitech SV3H712 AMP, Rear optical S/PDIF out port, Premium audio capacitors, Audio cover
Back Panel I/O Ports:
  • 2 x Thunderbolt 4 ports (2 x USB Type-C)
  • 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge)
  • 2 x USB 5Gbps ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x Wi-Fi module
  • 1 x Intel 2.5Gb Ethernet port
  • 2 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack button
  • 1 x Clear CMOS button
Internal I/O Connectors:
Fan and Cooling Related:
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 5 x 4-pin Chassis Fan headers
Power Related:
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connectors
  • Storage Related:
  • 5 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
USB:
  • 1 x USB 20Gbps connector (supports USB Type-C )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous:
  • 3 x Addressable Gen 2 headers
  • 1 x Chassis Intrusion header
  • 1 x CPU Over voltage jumper
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x Start button
  • 1 x 10-1 pin Front System Panel header
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt (USB4) header
Accessories:
  • Cables:2 x SATA 6Gb/s cables
  • Additional Cooling Kit:1 x Thermal pad for M.2 22110
Miscellaneous:
  • 1 x ASUS WiFi Q-Antenna
  • 1 x Cable ties package
  • 1 x M.2 Q-Latch package
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 5 x M.2 rubbers
  • Documentation:1 x Quick start guide
  • Operating System:Windows 11 (22H2 later)
Form Factor:
  • ATX Form Factor:12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
