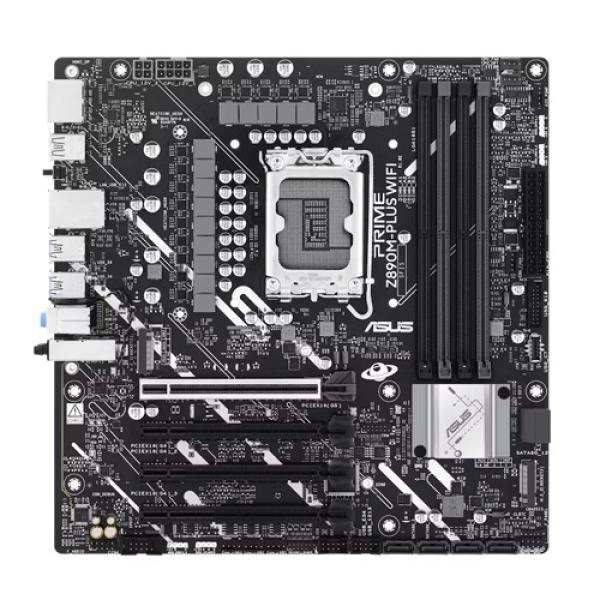

PRIME Z890M PLUS WIFI CSM



PRIME Z890M PLUS WIFI CSM

CPU:
  • Supports Intel Core Ultra Processors(Series 2), LGA1851
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
  • Chipset:Intel Z890 Chipset
  • Memory:4 x DIMM slots, max. 192GB, DDR5
  • Support up to 8666+MT/s (OC),  Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
  • Dual channel memory architecture
  • DIMM Fit
  • Supports Intel Extreme Memory Profile (XMP)
  • ASUS Enhanced Memory Profile III(AEMPIII)
Graphics:
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output
Expansion Slots:
  • Intel Core Ultra Processors (Series 2)
  • 1 x PCIe 5.0 x16 slot
  • Intel Z890 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 2 x PCIe 4.0 x16 slots (support x1 mode)
Storage:
  • Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
  • Intel Core Ultra Processors (Series 2)
  • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
  • Intel Z890 Chipset
  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • 6 x SATA 6Gb/s ports
Ethernet:
  • 1 x Realtek 2.5Gb Ethernet
  • ASUS LANGuard
  • Wireless & Bluetooth
  • Wi-Fi 7
  • 2x2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band
  • Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  • Bluetooth v5.4
USB:
  • Rear USB (Total 8 ports):
  • 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
  • 1x USB 10Gbps port (1 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports):
  • 1 x USB 5Gbps connector (supports USB Type-C)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC:
  •  Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  •  Supports up to 24-Bit/192 kHz playback
  • Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers
Back Panel I/O Ports:
  • 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
  • 1x USB 10Gbps port (1 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x Wi-Fi module
  • 1 x Realtek 2.5Gb Ethernet
  • 3 x Audio jacks
  • 1 x BIOS FlashBack button
Internal I/O Connectors:
Fan and cooling related:
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
Power related:
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V CPU Power connector
  • 1 x 4-pin +12V CPU Power connector
Storage related:
  • 3 x M.2 slots (Key M)
  • 6 x SATA 6Gb/s ports
USB:
  • 1 x USB 5Gbps connector (supports USB Type-C)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous:
  • 3 x Addressable Gen2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x Chassis Intrusion header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin Front Panel System header
  • 1 x Thunderbolt (USB4) header
Accessories:
  • Cables:2 x SATA 6Gb/s cables
  • Miscellaneous:1 x ASUS WiFi Q-Antenna, 3 x Screw packages for M.2 SSD
  • Documentation:1 x ACC Express activation key card,1 x Quick start guide
  • Operating System: Windows 11  (22H2 & later)
Form Factor:
  • mATX Form Factor:9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
